Front Impact Sensor (FIS): Removal

  1. Disconnect the battery negative terminal.
    CAUTION:
    • After disconnecting the cables, wait at least 3 minutes.
  2. Remove the front impact sensor assembly (A) after removing the bolt after disconnecting the connector (B).

    Tightening torque:

    10.8 - 12.8 N.m (1.1 - 1.3 kgf.m, 8.0 - 9.4 Ib-ft)

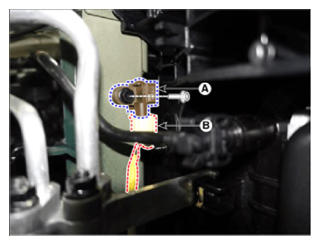

    [LH]

    G14753773Courtesy of HYUNDAI MOTOR AMERICA

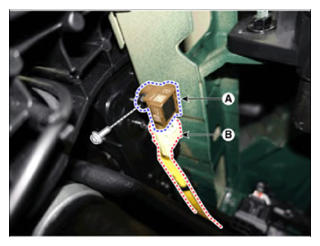

    [RH]

    G14753774Courtesy of HYUNDAI MOTOR AMERICA
