Components & Components Location: Components

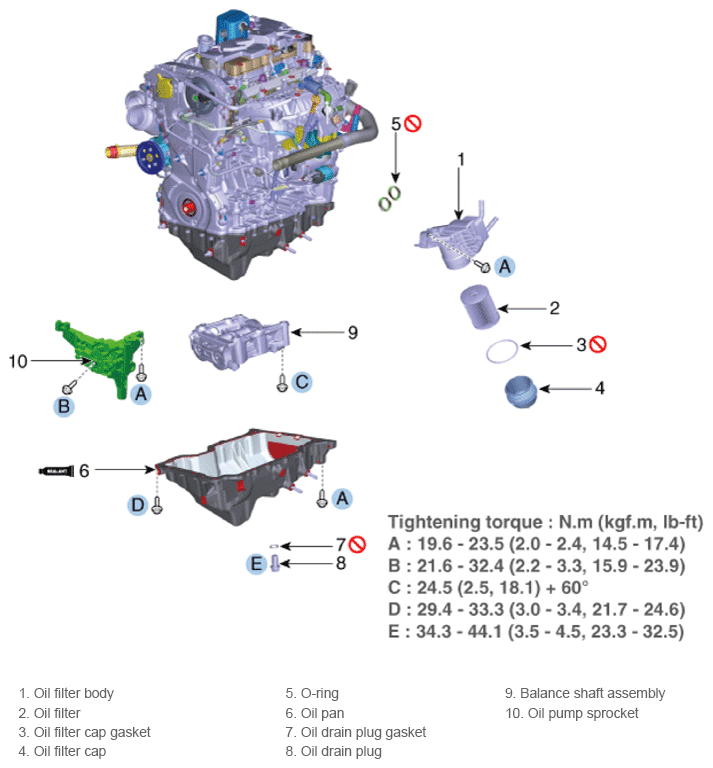

Fig 1: Lubrication System Components Location With Torque Specification

G14752735

Courtesy of HYUNDAI MOTOR AMERICA
