Front Seat Shield Inner Cover: Replacement

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

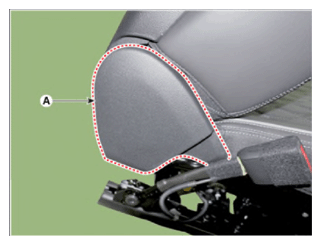

  2. Remove the front seat shield inner cover (A).
    G14754466Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse removal procedure.
