Connector End View And Terminal Description

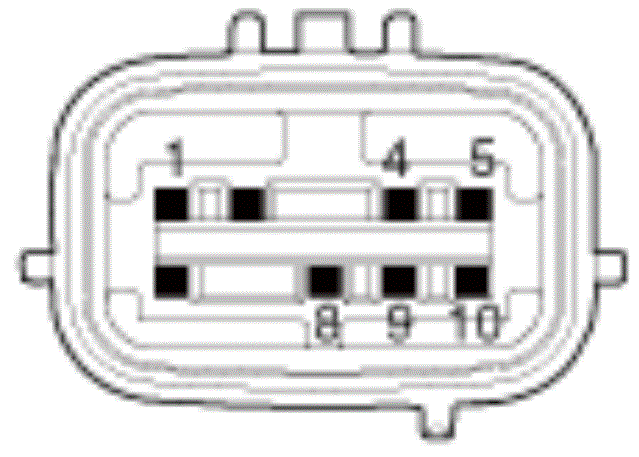

G14765300Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin NO Description Pin NO Description

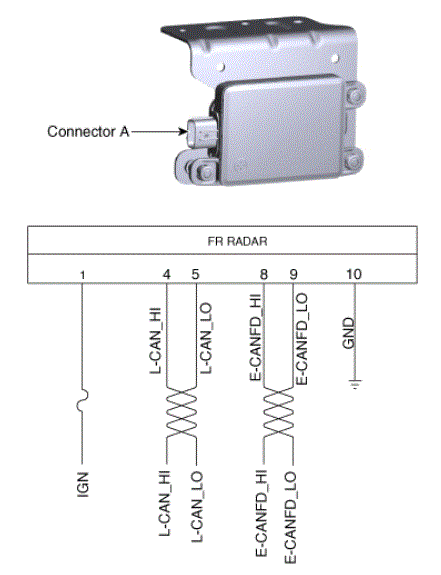

G14765301Courtesy of HYUNDAI MOTOR AMERICA
 1 IGN 6 -
2 - 7 -
3 - 8 E-CANFD_High
4 L-CANFD1_High or A-CANFD_High 9 E-CANFD_Low
5 L-CANFD1_Low or A-CANFD_Low 10 Ground
