Home >> Genesis >> 2022 >> GV70 2.5T Advanced >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Steering Column Module Diagnosis >> DTC B1602-00: CAN Line Error >> Troubleshooting >> Diagnostic Flowchart

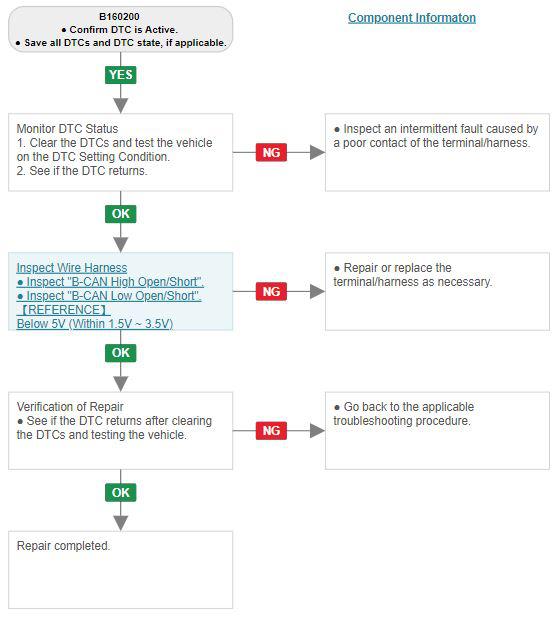

Diagnostic Flowchart

G14737779Courtesy of HYUNDAI MOTOR AMERICA
