Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front drive shaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove the trans axle side joint.

    (Refer to Driveshaft Assembly - "Joint Assembly (Transaxle side) ")

  3. Remove the dynamic damper band (A, B) using driver (-).

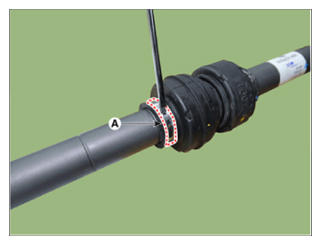

    G15588262Courtesy of HYUNDAI MOTOR AMERICA

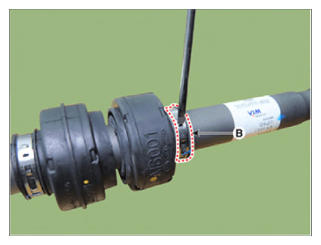

    G15588263Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the dynamic damper, lubricate the shaft with soapy water to prevent shaft damage.
  4. Remove the dynamic damper (A).

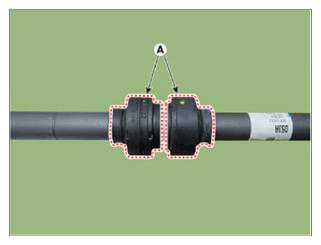

    G15588264Courtesy of HYUNDAI MOTOR AMERICA
