Home >> Genesis >> 2022 >> G70 2.0T, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Trunk Module Diagnosis >> DTC B24D0-00: Power Trunk Module Inline Mode Not Deactivated >> Troubleshooting >> Diagnostic Flowchart

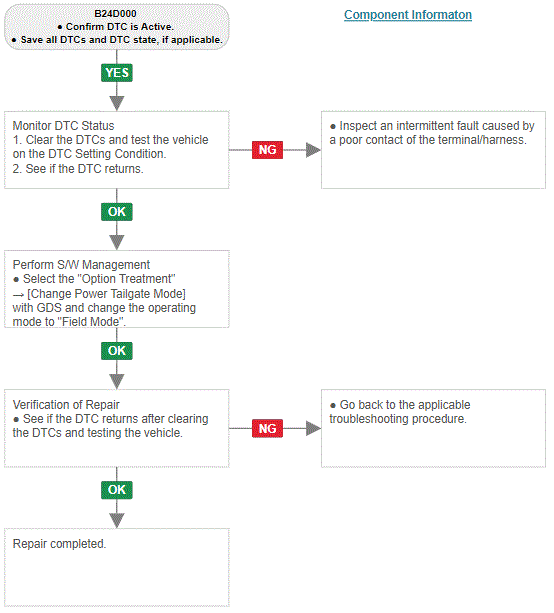

Diagnostic Flowchart

G15583154Courtesy of HYUNDAI MOTOR AMERICA
