SVM Front Camera

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

  3. Disconnect the SVM front camera connector.

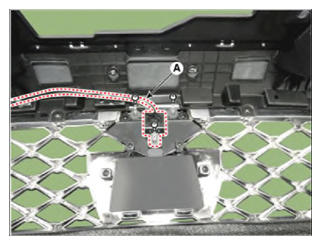

  4. Loosen the mounting screws and remove the SVM front camera (A)
    G15590630Courtesy of HYUNDAI MOTOR AMERICA
