Repair Procedures: Removal

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
NOTE:
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.

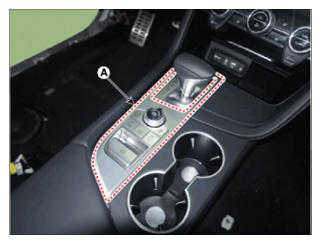

  2. Remove the floor console upper complete assembly (A).
    G15590639Courtesy of HYUNDAI MOTOR AMERICA

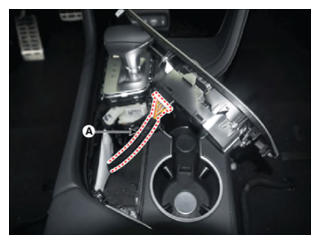

  3. Disconnect the console upper switch connector (A).
    G15590640Courtesy of HYUNDAI MOTOR AMERICA

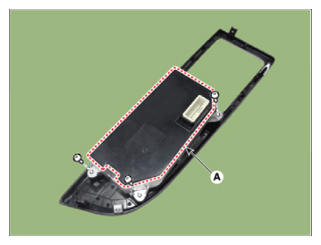

  4. Remove the SVM switch assembly (A) after loosening mounting screws.
    G15590641Courtesy of HYUNDAI MOTOR AMERICA
