Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the luggage side trim [RH].

    (Refer to Body - "LUGGAGE SIDE TRIM ")

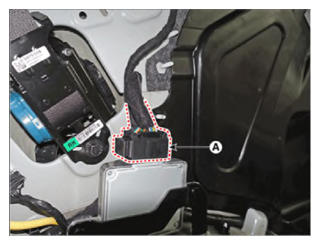

  3. Separate the PSB unit connector (A).
    G14722871Courtesy of HYUNDAI MOTOR AMERICA

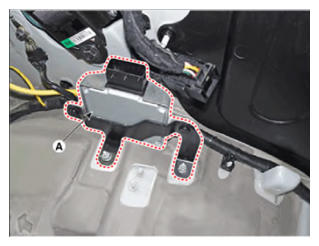

  4. Loosen the mounting bolts, remove the PSB unit (A).
    G14722872Courtesy of HYUNDAI MOTOR AMERICA
