Diagnostic Flowchart

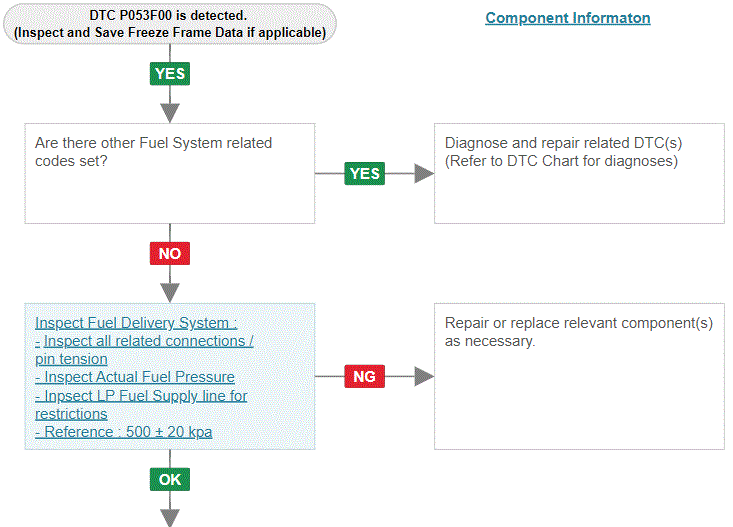

Fig 1: 1 Of 2
G14853732Courtesy of HYUNDAI MOTOR AMERICA

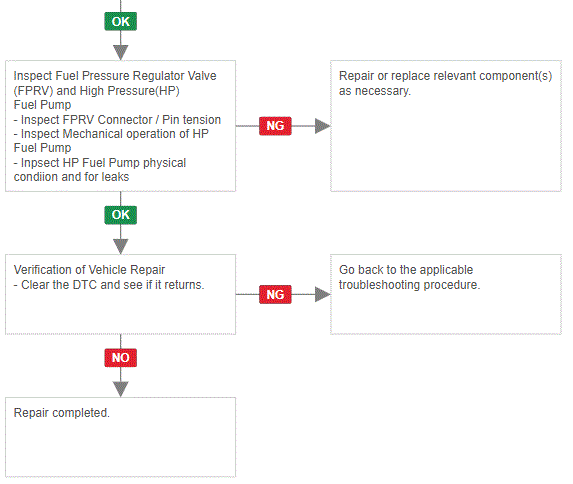

Fig 2: 2 Of 2
G00620059Courtesy of HYUNDAI MOTOR AMERICA
