Home >> Genesis >> 2021 >> GV80 3.5T Advanced >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 3.5L (5 Of 9) >> DTC P0451-00: EVAP System Pressure Sensor/Switch Circuit Range/Performance >> Troubleshooting >> Diagnostic Flowchart

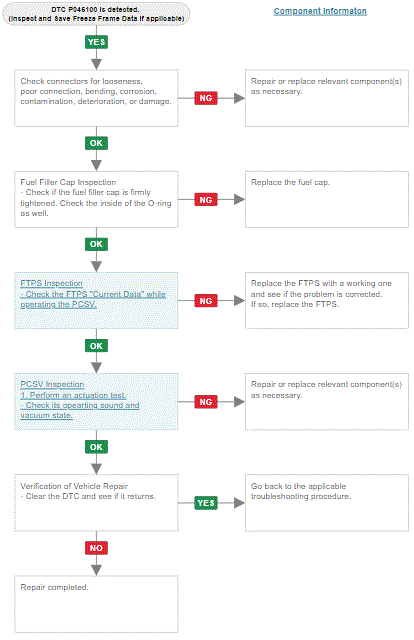

Diagnostic Flowchart

G14853705Courtesy of HYUNDAI MOTOR AMERICA
