Left/Right Camera

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

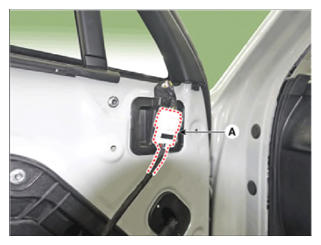

  3. Disconnect the mirror connector (A).
    G14727778Courtesy of HYUNDAI MOTOR AMERICA

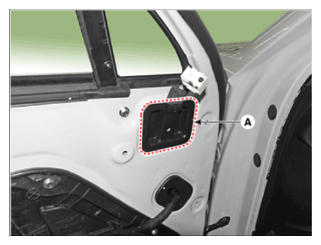

  4. Remove the wiring cover (A).
    G14727779Courtesy of HYUNDAI MOTOR AMERICA

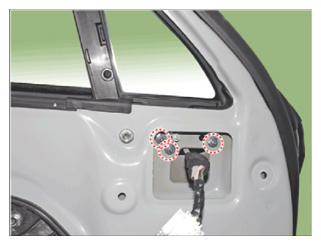

  5. Loosen the mounting nuts and remove the outside view mirror.
    G14727780Courtesy of HYUNDAI MOTOR AMERICA

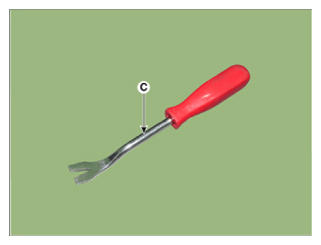

  6. Using a fastener remover (C), remove the mirror (A) as illustration below.
    G14727781Courtesy of HYUNDAI MOTOR AMERICA
    G14727782Courtesy of HYUNDAI MOTOR AMERICA

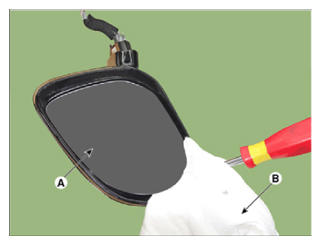

    CAUTION:
    • Protect mirror (A) from removing tool with cloth (B) wrapped.
    • Be careful not to damage mirror and mirror housing during removing process.
    • Apply force around the center of mirror because to apply force the end of mirror will break it.

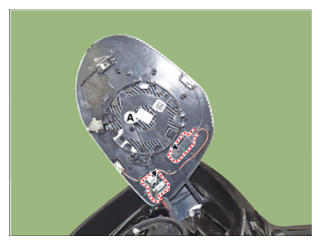

  7. Disconnect heat wire and BCW connectors (A) and then remove the mirror.
    G14727783Courtesy of HYUNDAI MOTOR AMERICA

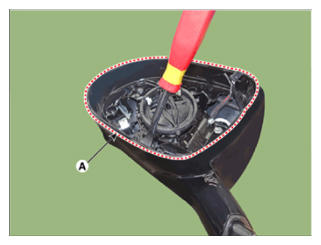

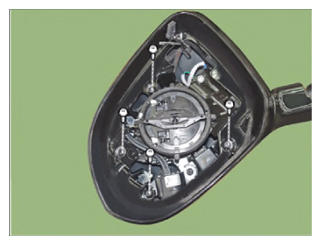

  8. Loosen the mounting screws and remove the outside mirror housing cover (A).
    G14727784Courtesy of HYUNDAI MOTOR AMERICA
    G14727785Courtesy of HYUNDAI MOTOR AMERICA

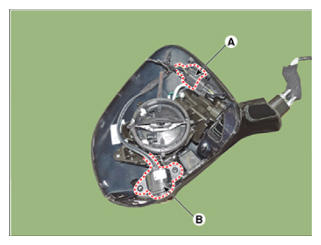

  9. Disconnect the Left/Right camera connector (A) and remove the Left/Right camera (B).
G14727786Courtesy of HYUNDAI MOTOR AMERICA
