Home >> Genesis >> 2021 >> GV80 2.5T Advanced, AWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> 4WD Control Diagnosis >> DTC U0001-00: High Speed CAN Communication Bus Off >> Troubleshooting >> Diagnostic Flowchart

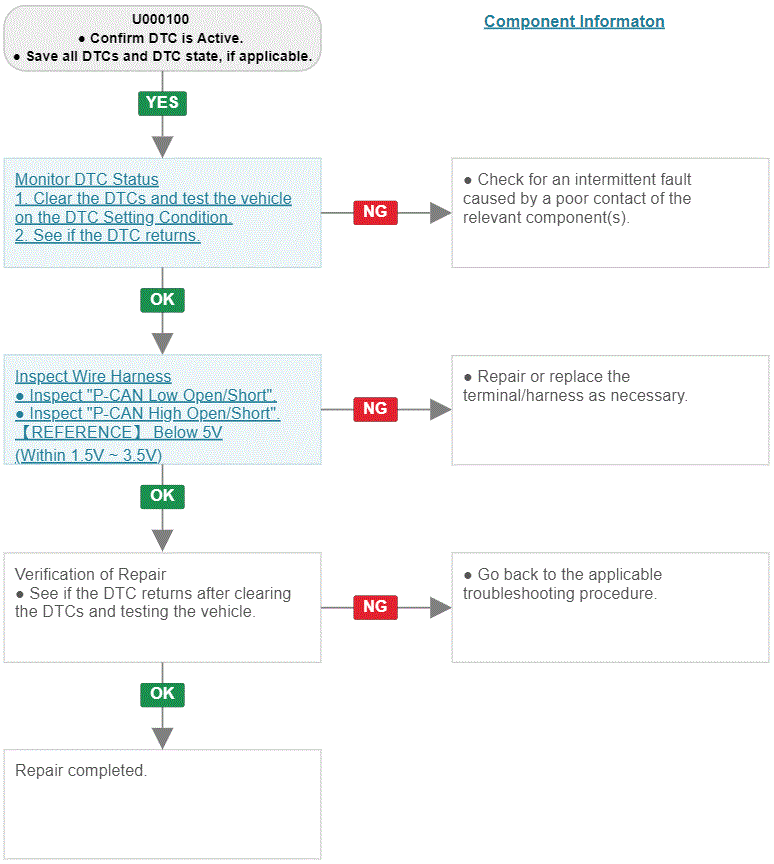

Diagnostic Flowchart

G14719850Courtesy of HYUNDAI MOTOR AMERICA
