Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "On".
  3. Select and monitor from Current Data:
    1. Input Speed
    2. Output Speed (PG-B)
    3. Shift Lever switch
    4. Vehicle Speed
    5. Engine RPM
  4. Test Drive vehicle and monitor Input Speed Sensor Data.

    Specification:  Input Speed increase gradually in relation to Engine Speed

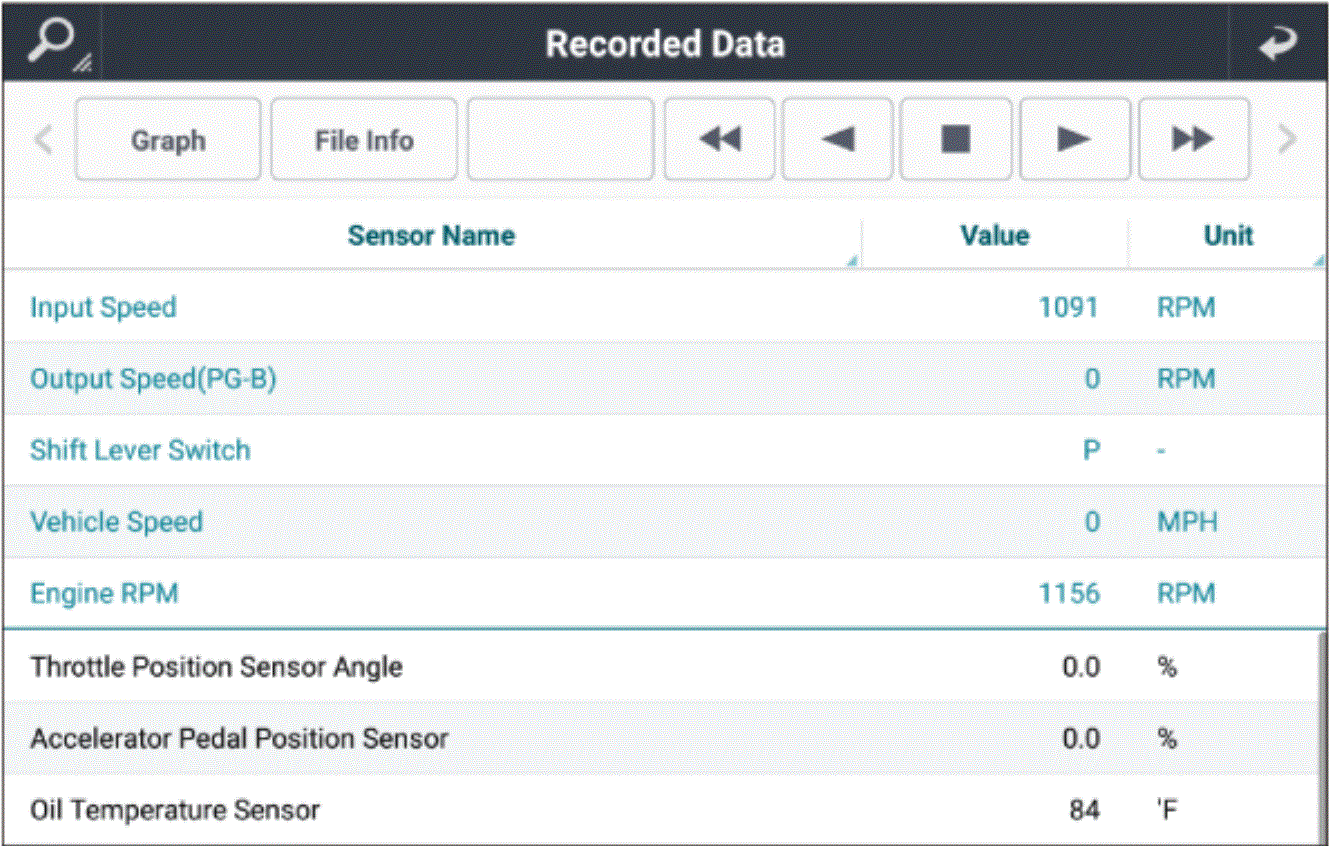

    G14853424Courtesy of HYUNDAI MOTOR AMERICA

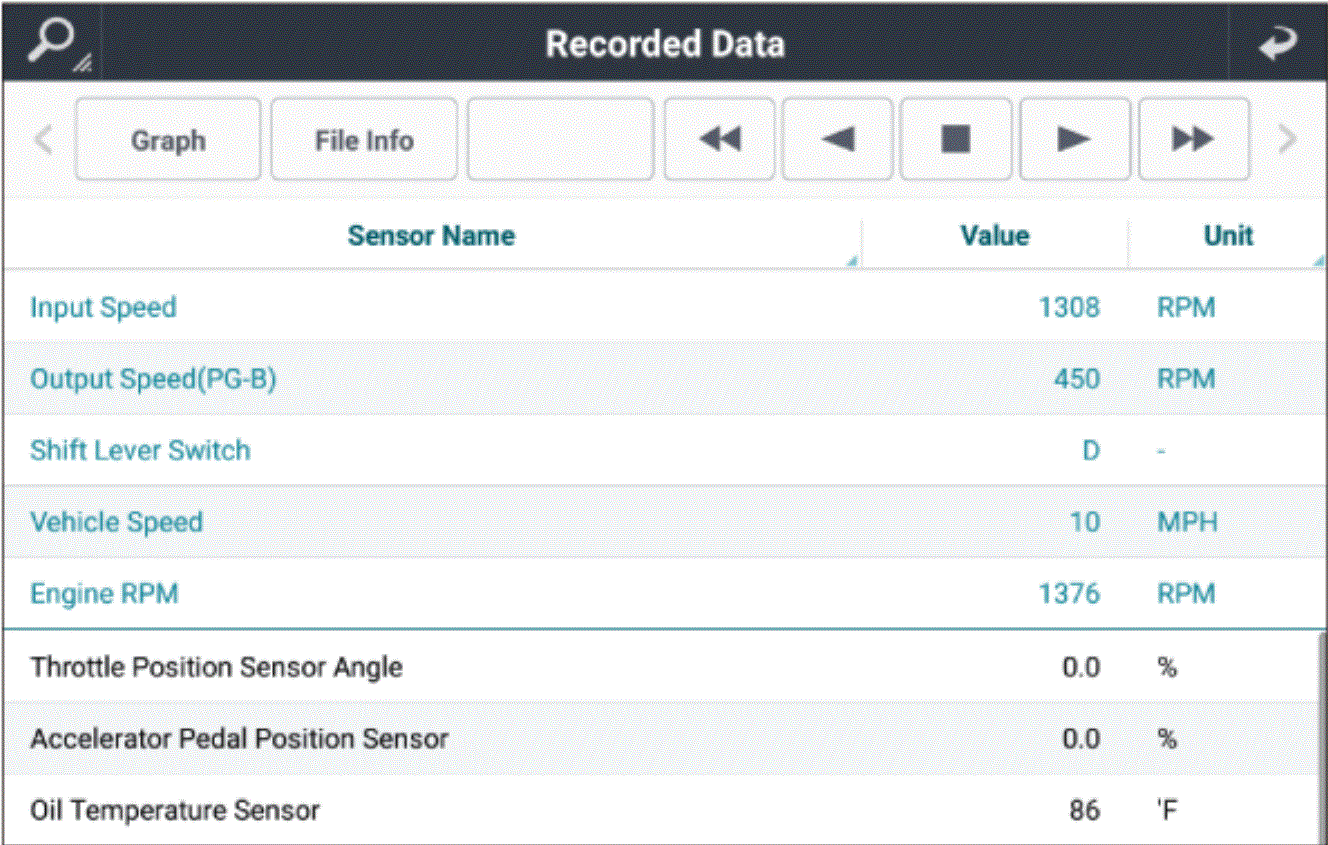

    G14853425Courtesy of HYUNDAI MOTOR AMERICA
