Removal and Installation

  1. Disconnect the negative (-) battery cable.
  2. Remove the glove box.

    (Refer to Body - "GLOVE BOX ")

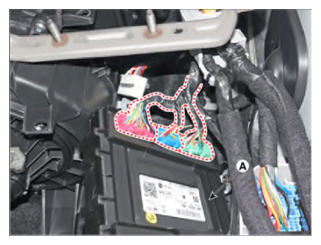

  3. Disconnect the IBU connectors (A) and then remove the IBU (B).
    G14722671Courtesy of HYUNDAI MOTOR AMERICA
    G14722672Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
