Wheel Sensor ID Writing Method

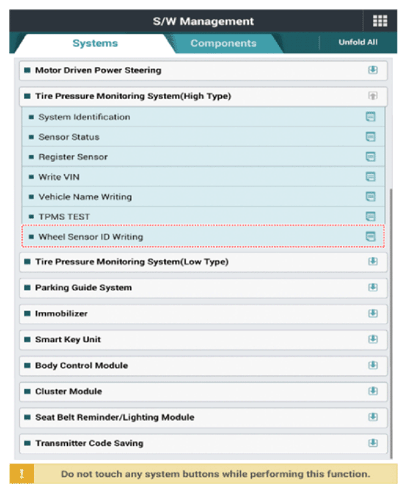

G14722677Courtesy of HYUNDAI MOTOR AMERICA

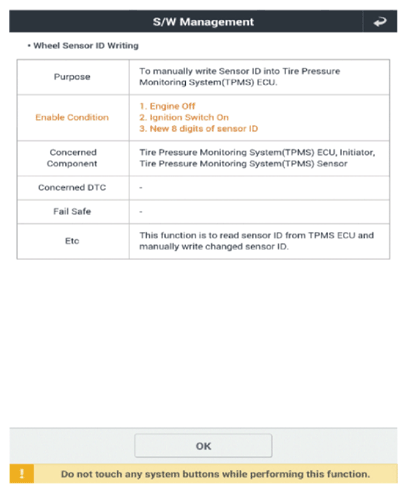

G14722678Courtesy of HYUNDAI MOTOR AMERICA

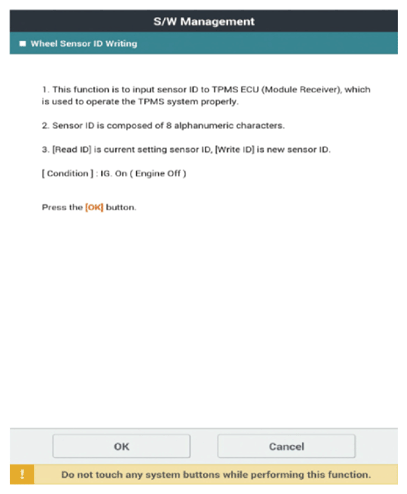

G14722679Courtesy of HYUNDAI MOTOR AMERICA

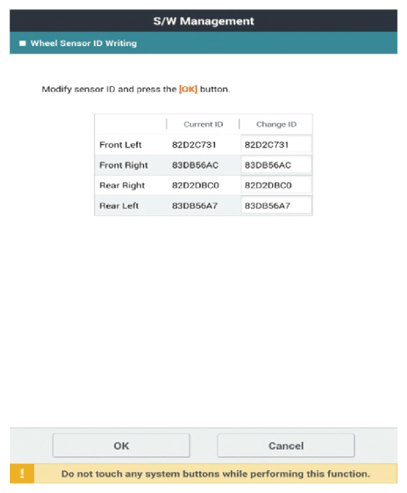

G14722680Courtesy of HYUNDAI MOTOR AMERICA

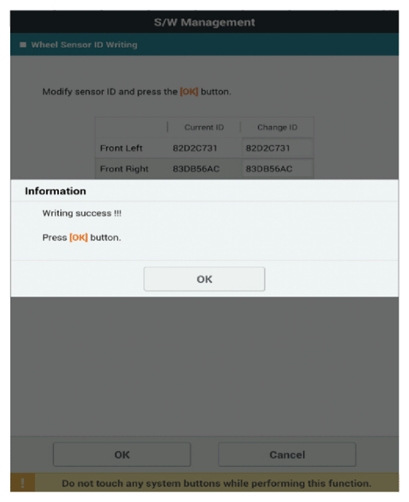

G14722681Courtesy of HYUNDAI MOTOR AMERICA
