Repair Procedures: Replacement: RH

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

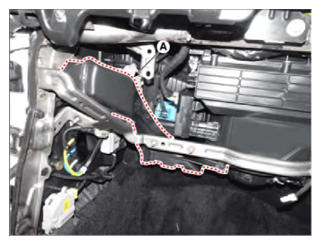

    G14727482Courtesy of HYUNDAI MOTOR AMERICA
  3. Separate the temperature control actuator connector (A) and loosen the mounting screw and remove the temperature control actuator (B).

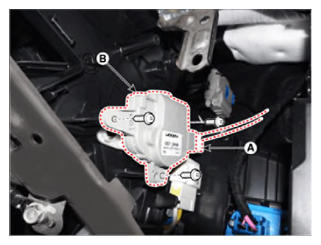

    G14727483Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
