Repair Procedures: Replacement: RH

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

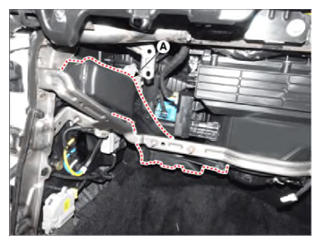

  3. Loosen the mounting screws and then remove the shower duct [RH].
    G14727487Courtesy of HYUNDAI MOTOR AMERICA

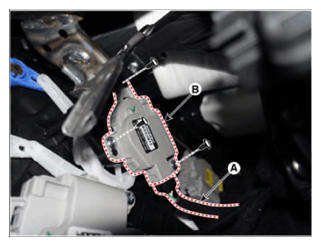

  4. Press the lock pin and disconnect the mode control actuator connector (A) and loosen the mounting screw and then remove the mode control actuator (B).
    G14727488Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
