Repair Procedures: Replacement: LH

  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body (Interior and Exterior) - "MAIN CRASH PAD ASSEMBLY ")

  3. Remove the heater & blower unit assembly.

    (Refer to Heater - "HEATER UNIT ")

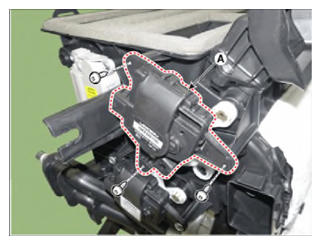

  4. Loosen the mounting screw and remove the mode control actuator (A).
    G14727486Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
