Console temperature actuator

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

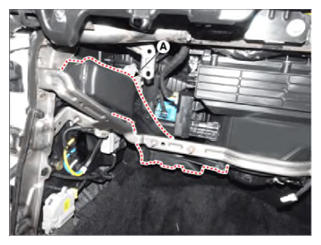

  3. Loosen the mounting screw and then remove the shower duct [RH] (A).
    G14727492Courtesy of HYUNDAI MOTOR AMERICA

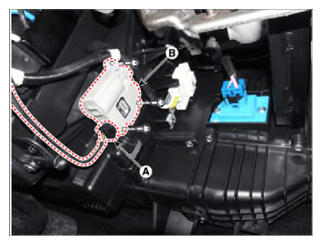

  4. Disconnect the console temperature actuator connector (A) and loosen the mounting screw and then remove the console temperature actuator (B).
    G14727493Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
