Console ON/OFF actuator

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

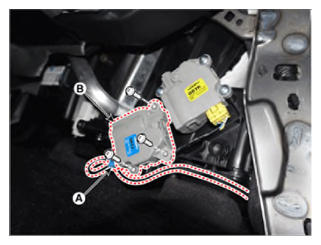

  3. Disconnect the console ON/OFF actuator connector (A) and loosen the mounting screw and then remove the console ON/OFF actuator (B).
    G14727491Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
