Repair Procedures: Replacement: LH

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

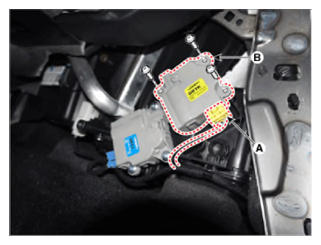

  3. Disconnect the console mode actuator connector (A) and loosen the mounting screw and then remove the console mode actuator (B).
    G14727495Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
