Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body (Interior and Exterior) - "MAIN CRASH PAD ASSEMBLY ")

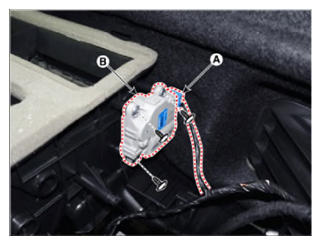

  3. Press the lock pin and separate the connector (A) and loosen the mounting screws and remove the auto defogging actuator (B).
    G14727499Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
