Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel [RH].

    (Refer to Body (Interior and Exterior) - "CRASH PAD CENTER PANEL ")

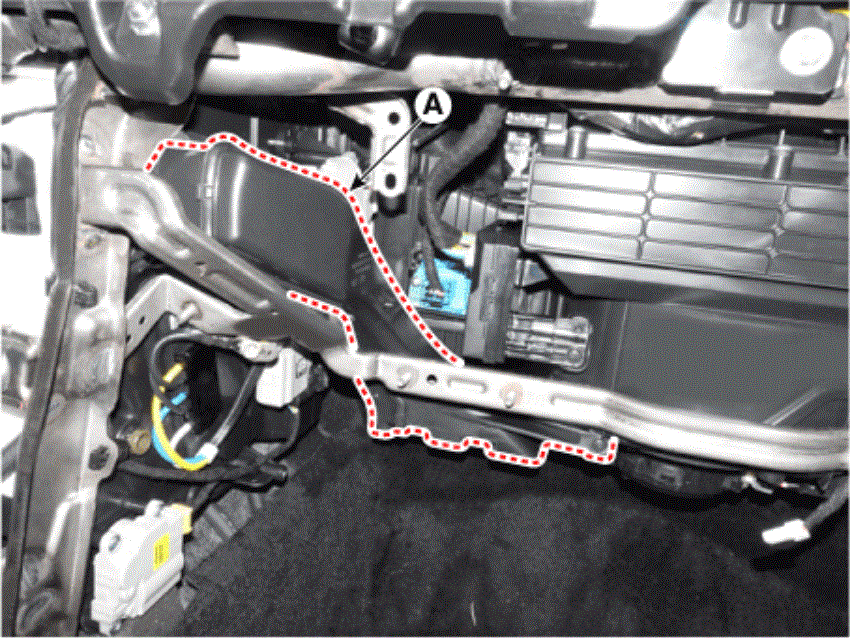

  3. Loosen the mounting screw and then remove the shower duct (A).
    G14727594Courtesy of HYUNDAI MOTOR AMERICA

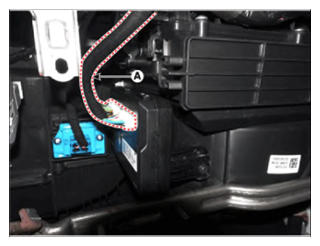

  4. Press the lock pin and then disconnect the heater control unit connector (A).
    G14727595Courtesy of HYUNDAI MOTOR AMERICA

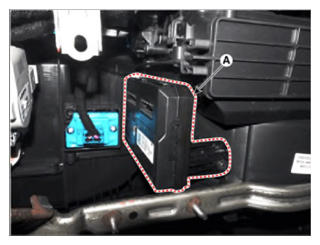

  5. Loosen the mounting screw and then remove the heater control unit (A).
    G14727596Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.

    Information

    • Be careful that the coolant may flow when removing the heater core.
