Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.

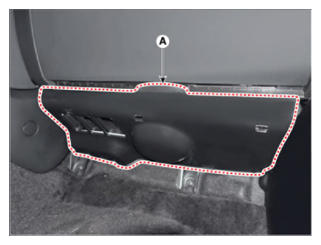

  2. Remove the passenger side crash pad under cover (A).
    G14727536Courtesy of HYUNDAI MOTOR AMERICA

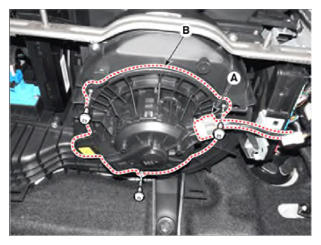

  3. Disconnect the blower motor connector (A) and then remove the blower motor (B) after loosening the screws.
    G14727537Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
