Repair Procedures: Replacement

  1. Remove the crash pad center panel [LH].

    (Refer to Body (Interior and Exterior) - "CRASH PAD CENTER PANEL ")

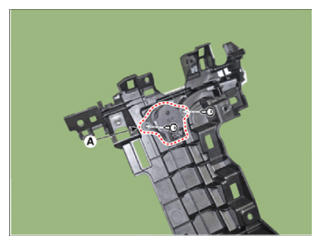

  2. Loosen the mounting screw and then remove the in-car sensor (A).
    G14727424Courtesy of HYUNDAI MOTOR AMERICA
  3. Install in the reverse order of removal.
