Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")

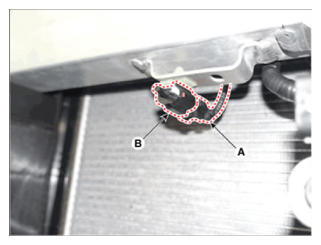

  3. Disconnect the connector (A) and then remove the ambient temperature sensor (B).
    G14727429Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
