Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Recover the refrigerant with a recovery/charging station.

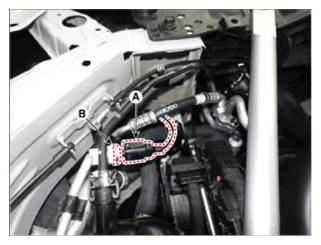

  3. Disconnect the A/C pressure transducer connector (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.8 - 8.7 lb-ft)

    G14727417Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
NOTE:
  • When installing, replace it with a new O-ring.
