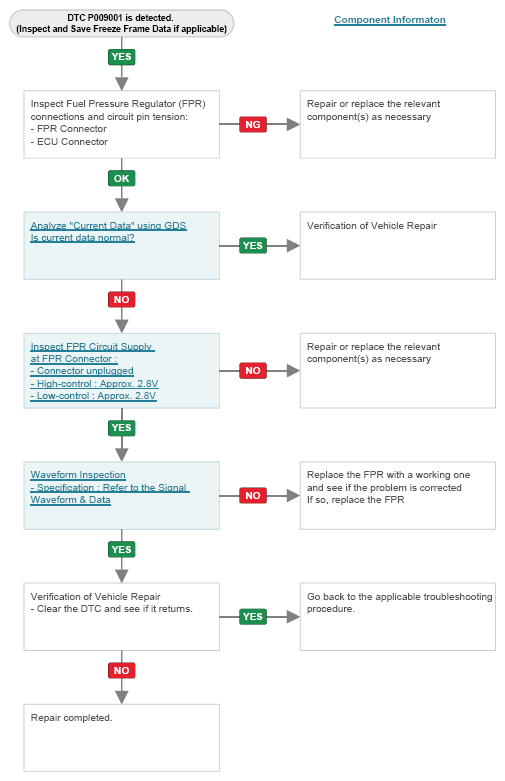

Home >> Genesis >> 2021 >> GV80 2.5T Advanced, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 2.5L (1 Of 6) >> DTC P0090-01: Fuel Pressure Regulator 1 Control Circuit/Open >> Troubleshooting >> Diagnostic Flowchart
