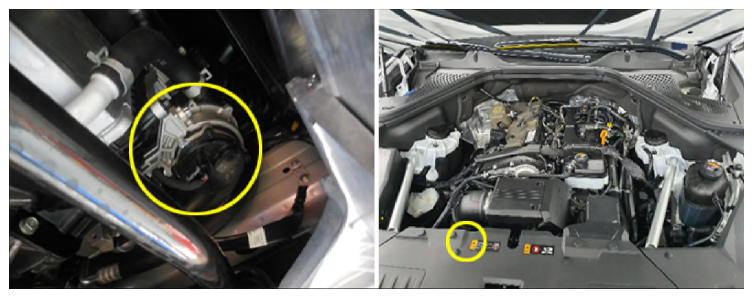

Electronic Water Pump (EWP)

G14719904Courtesy of HYUNDAI MOTOR AMERICA

The electric water pump is a device for forcibly circulating coolant to cool the engine. When the coolant temperature rises above the threshold in the ISG application state, the ECM sends a command signal to the EWP via CAN communication to operate the electric water pump (EWP).
