Repair Procedures: Removal: Notes

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear roof trim.

    (Refer to Body - "ROOF TRIM ASSEMBLY ")

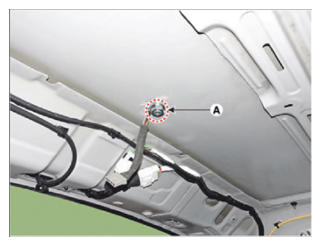

  3. Loosening the mounting nut (A) after disconnecting the antenna connector.
    G14723756Courtesy of HYUNDAI MOTOR AMERICA

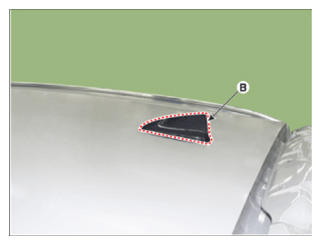

  4. Remove the roof antenna (B).
    G14723757Courtesy of HYUNDAI MOTOR AMERICA
