Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

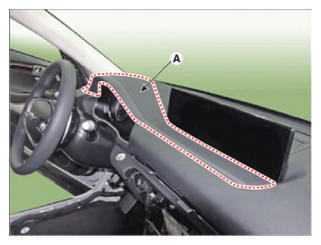

  2. Remove the cluster fascia upper garnish (A).
    G14727764Courtesy of HYUNDAI MOTOR AMERICA

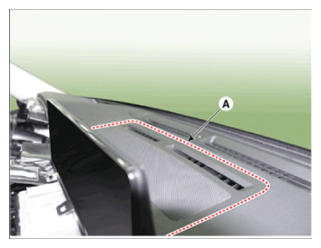

  3. Remove the crash pad upper garnish (A).
    G14727765Courtesy of HYUNDAI MOTOR AMERICA

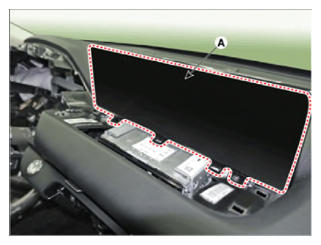

  4. Loosen the mounting screws and remove the front monitor (A).
    G14727766Courtesy of HYUNDAI MOTOR AMERICA

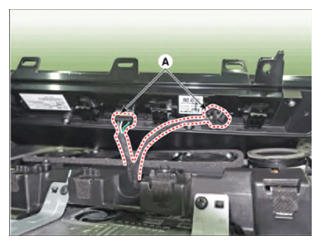

  5. Disconnect the front monitor connectors (A).
    G14727767Courtesy of HYUNDAI MOTOR AMERICA

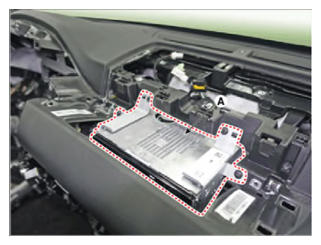

  6. Loosen the mounting screws and remove the H/UNIT (A).
    G14727768Courtesy of HYUNDAI MOTOR AMERICA

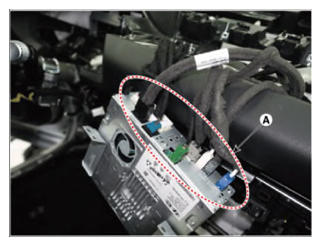

  7. Disconnect the H/UNIT connector (A).
G14727769Courtesy of HYUNDAI MOTOR AMERICA
