Rear Camera

  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate back panel.

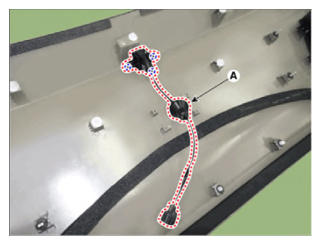

  3. Loosen the mounting screws and remove the rear camera (A).
G14727777Courtesy of HYUNDAI MOTOR AMERICA
