Front Camera

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

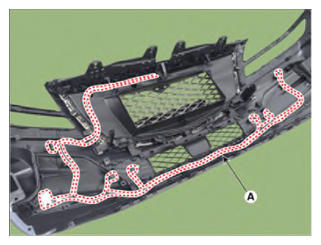

  3. Remove the front bumper cover main wiring (A).
    G14727773Courtesy of HYUNDAI MOTOR AMERICA

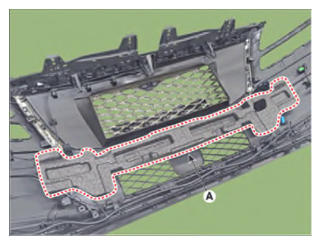

  4. Remove the front bumper energy absorber (A).
    G14727774Courtesy of HYUNDAI MOTOR AMERICA

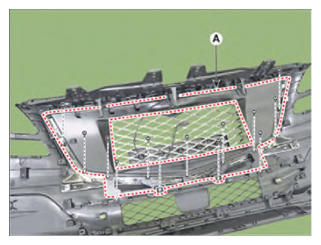

  5. Loosen the mounting screws and remove the radiator grille cover (A).
    G14727775Courtesy of HYUNDAI MOTOR AMERICA

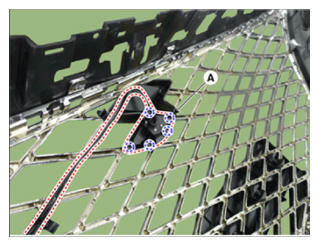

  6. Loosen the mounting screws and remove the front camera (A).
G14727776Courtesy of HYUNDAI MOTOR AMERICA
