Repair Procedures: Removal

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad lower panel.

   (Refer to Body - "CRASH PAD LOWER PANEL ")

3. Loosen the mounting bolts and remove the knee airbag (A).

   Courtesy of HYUNDAI MOTOR AMERICA

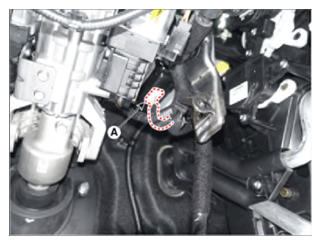

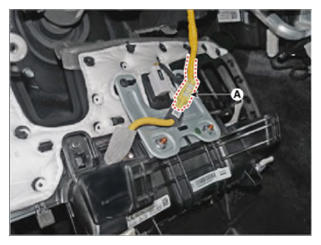

4. Disconnect the knee airbag connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

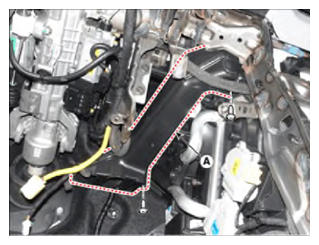

5. Loosen the mounting screws and remove the shower duct (A).

   Courtesy of HYUNDAI MOTOR AMERICA

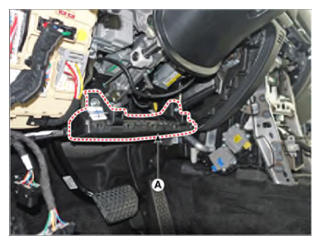

6. Disconnect the IAU Connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

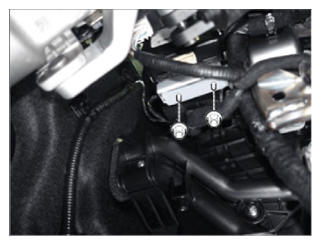

7. Loosen the mounting nuts and lower the IAU unit.

   Courtesy of HYUNDAI MOTOR AMERICA

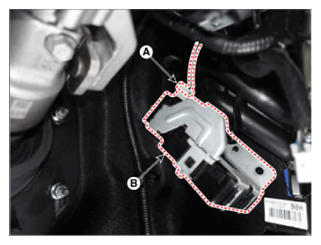

8. Disconnect the BLE Unit connector (A) and remove the IAU Unit (B).

   Courtesy of HYUNDAI MOTOR AMERICA

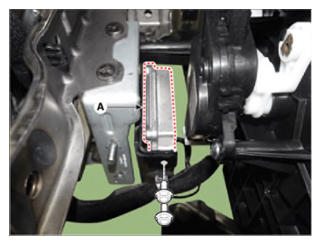

9. Loosen the mounting bolts and remove the ADAS_DRV Unit (A).

   Courtesy of HYUNDAI MOTOR AMERICA

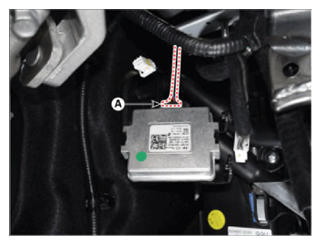

10. Disconnect the ADAS_DRV Unit connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
