Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.

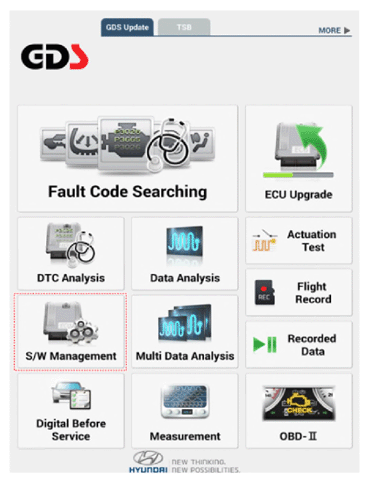

  3. Select the 'S/W Management' and 'Car model'.
    G14727825Courtesy of HYUNDAI MOTOR AMERICA

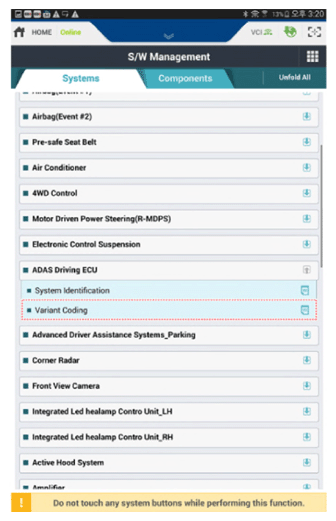

  4. Follow the on-screen instructions to perform the "variant coding" procedure.
G14727826Courtesy of HYUNDAI MOTOR AMERICA
