Integrated Body Control Unit (IBU)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad under cover. [Right side]

    (Refer to Body - "CRASH PAD UNDER COVER ")

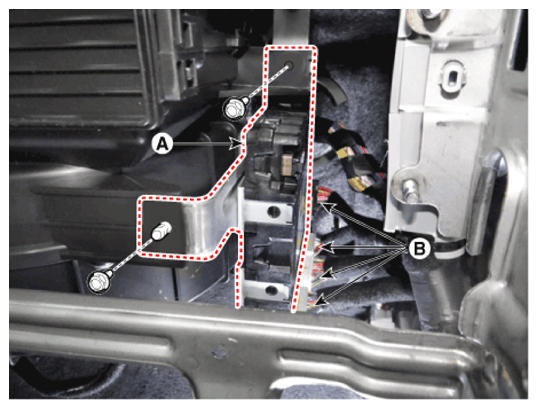

  3. Disconnect the connectors (B) and then remove the Integrated Body Control Unit (IBU).
    G14210110Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
