Monitor GDS Data: Notes

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. IG KEY "ON" & Engine "OFF".
  2. Connect GDS and select ID Register.

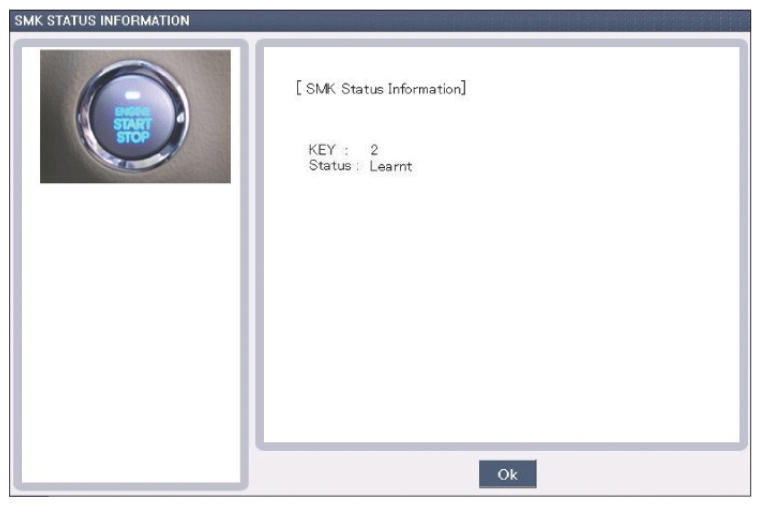

  3. Check Smart key status in "Vehicle S/W Management  ", if DTC is retrieved.
    G14228127Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the Smart key ECM learnt status?

    YES

    • Wait for 1 hour until ECM status is unlock with IG ON.
    • After ECM status is unlock, perform the key teaching procedure. Finally, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Fault is intermittent caused by poor contact in IBU (SMK + BCM + TPMS) and/or ECM's connector or was repaired and IBU (SMK + BCM + TPMS) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
    NOTE: ■ PIN code is programmed in IBU (SMK + BCM + TPMS), Transponder.
    1. If the IBU (SMK + BCM + TPMS) is not registered with PIN, key teaching process is not proceeded.
    2. Registering PIN is available after IBU (SMK + BCM + TPMS) is neutralized.
    3. Neutralization of Engine ECM is available with GDS (Registering PIN code)
    4. If the virgin engine ECM is installed on vehicle, Engine ECM is automatically programmed PIN code by IBU (SMK + BCM + TPMS)
    5. Registering PIN code is only possible for virgin or neutralized status.

    ■ All Learning procedure is able to do with a GDS in the vehicle's ignition key off state.
    • IBU (SMK + BCM + TPMS) Learning
      1. Before learning procedure for FOB Key, IBU (SMK + BCM + TPMS) should be registered PIN code first.
      2. In case of replacing IBU (SMK + BCM + TPMS), All of the keys should be newly registered again.
      3. In case that IBU (SMK + BCM + TPMS) receives 3 times with wrong PIN, It is not allowed for neutralization and Key Teaching for 1 hour.
      4. If the battery is discharged during neutralization or Teaching, Timer will start again from beginning. Therefore, it is avoidable to wait for 1 hour.
