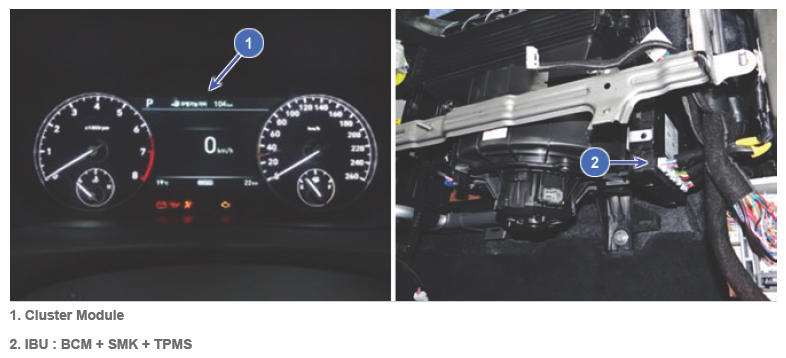

Component Location
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of HYUNDAI MOTOR AMERICA
|
NOTE:
Cluster:
"INSTRUMENT CLUSTER"
/ IBU
(Integrated Body control Unit): "IBU CONTROL MODULE" /
BCM:
Body Control Module
/ SMK:
Smart Key control Module
/ TPMS:
Tire Pressure Monitoring System module
