Circuit Diagram

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

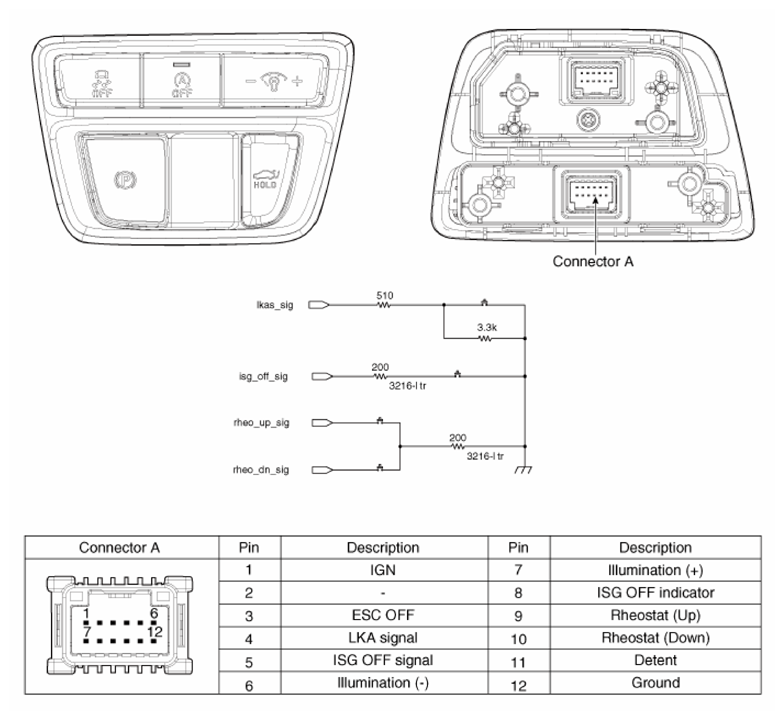

Fig 1: Lane Safety Button Connector End View And Terminal Description
G14234082Courtesy of HYUNDAI MOTOR AMERICA
