Repair Procedures: Replacement

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the crash pad center panel assembly [RH].
(Refer to Body (Interior and Exterior) - "CLUSTER FASCIA PANEL ")
Using a screwdriver or remover, remove the A/C & heater controller unit (A).

Courtesy of HYUNDAI MOTOR AMERICA

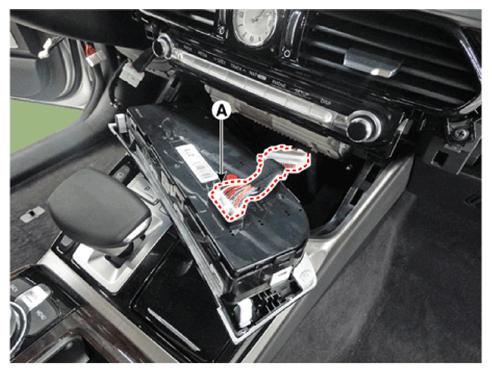

Disconnect the A/C & heater controller connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.

Information

Make sure the connector are connected in properly.
Replace any damaged clips.
