Repair Procedures: Removal

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the roof trim.

    (Refer to Body - "ROOF TRIM ASSEMBLY ")

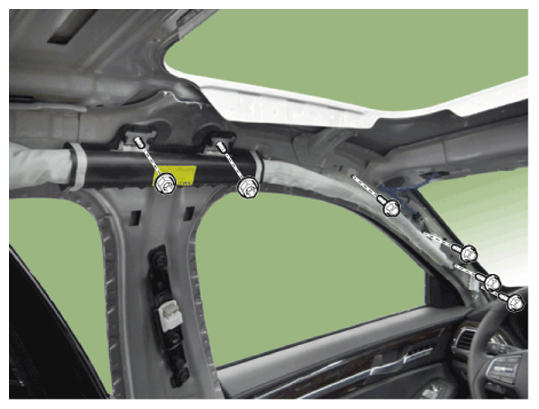

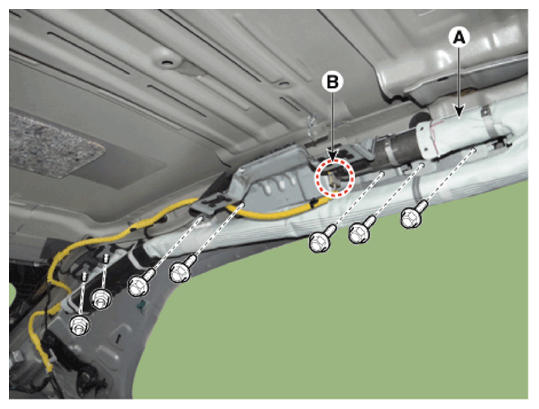

  3. Remove the curtain airbag (A) after disconnecting the curtain airbag harness connector (B) and loosening the mounting bolts.
G14233756Courtesy of HYUNDAI MOTOR AMERICA
G14233757Courtesy of HYUNDAI MOTOR AMERICA
