Front Brake Pads

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle, and make sure it is securely supported.

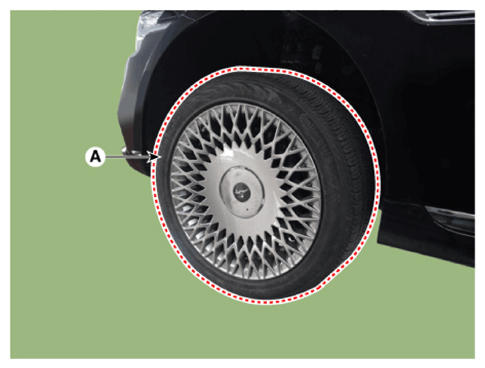

Remove the front wheel and tire (A) from the front hub.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the hub bolts when removing the front wheel and tire.

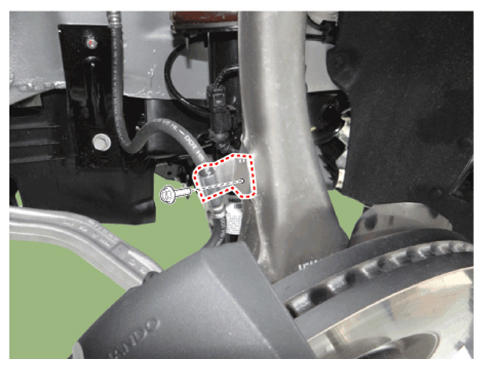

Remove the brake hose mounting bracket from the knuckle.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

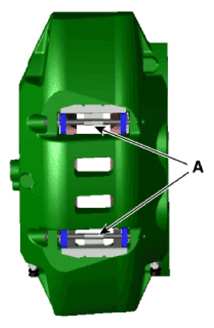

Remove locking pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

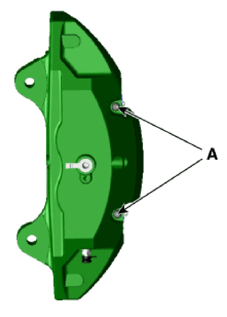

Remove guide pin (A) from the housing.

Courtesy of HYUNDAI MOTOR AMERICA

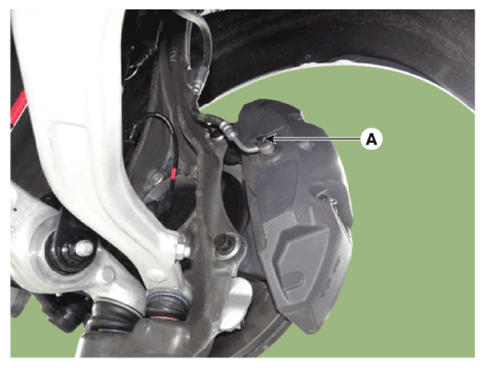

Loosen the hose eye-bolt (A) then remove the brake hose.
Tightening torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the caliper mounting bolts, and then remove the front caliper assembly (A).
Tightening torque:

78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

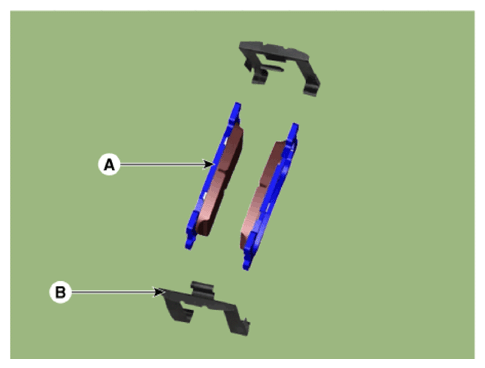

Remove pad spring (B) and brake pads (A) from the caliper.

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

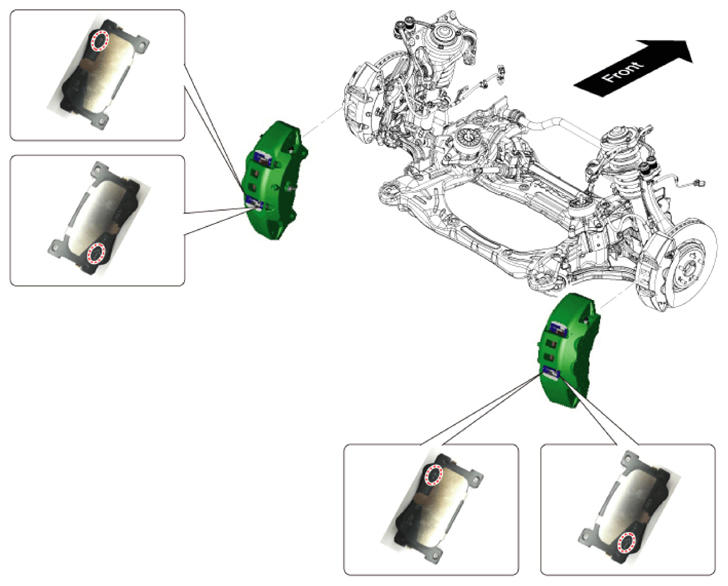

Matching the direction of the arrow on the pad and the vehicle forward direction.

Courtesy of HYUNDAI MOTOR AMERICA

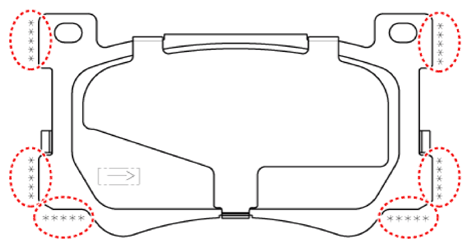

Apply the grease evenly on the sliding part as shown in the figure below.
Grease: NEVER - SEEZ - REGULAR GRADE (ITW)
Do not spill the grease on the break disc, it may damage the brake performance.
Be careful not to leak the grease at the outside of housing.
[Grease Applying Position]

Courtesy of HYUNDAI MOTOR AMERICA

To install, reverse the removal procedure.
