Rear Bumper Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper cover.

    (Refer to Body - "REAR BUMPER COVER ")

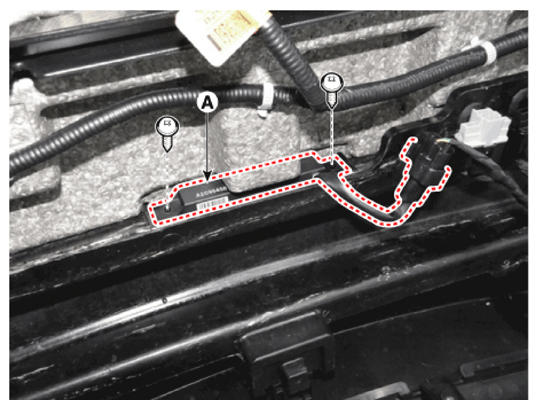

  3. After loosening the screws, remove the exterior bumper antenna (A).
G14235878Courtesy of HYUNDAI MOTOR AMERICA
