Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Turn the steering wheel so that the front wheels are placed in the straight ahead position.
  3. Remove the steering wheel.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

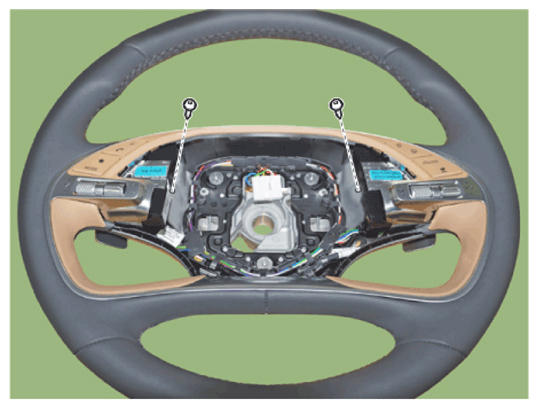

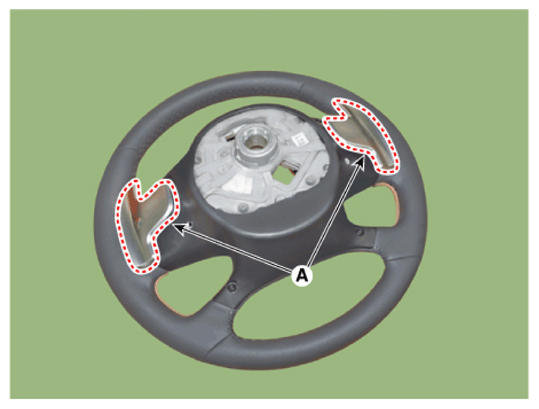

  4. Loosen the mounting screws and remove the paddle shift switch (A).
    G14234136Courtesy of HYUNDAI MOTOR AMERICA
    G14234137Courtesy of HYUNDAI MOTOR AMERICA

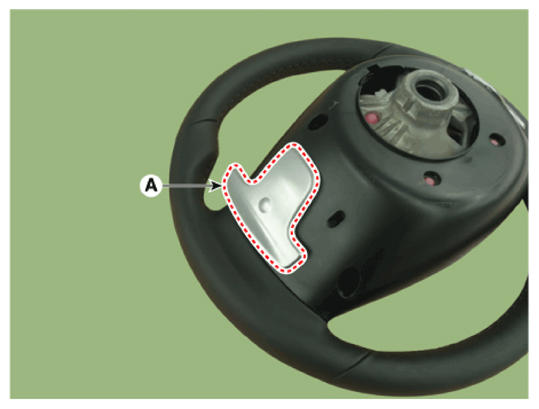

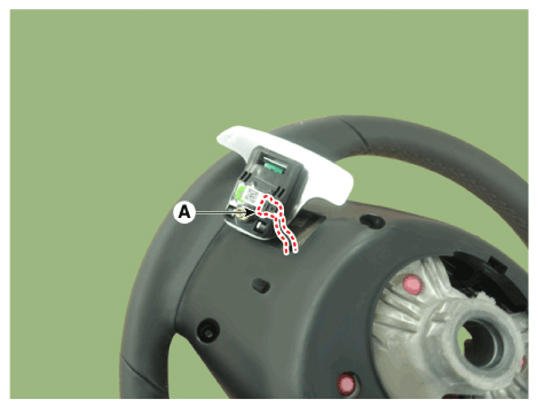

  5. Disconnect the paddle shift switch connector (A).
    G14234138Courtesy of HYUNDAI MOTOR AMERICA
    G14234139Courtesy of HYUNDAI MOTOR AMERICA

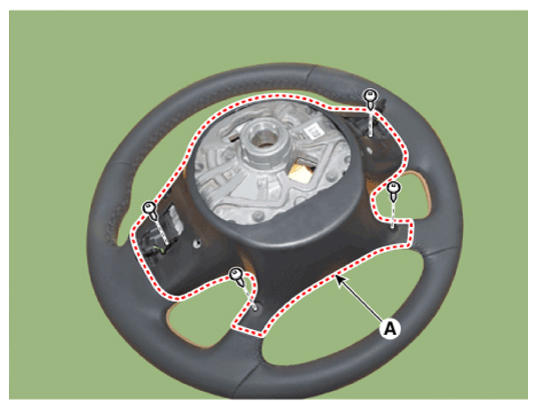

  6. Loosen the mounting screws and remove the lower cover (A).
    G14234140Courtesy of HYUNDAI MOTOR AMERICA

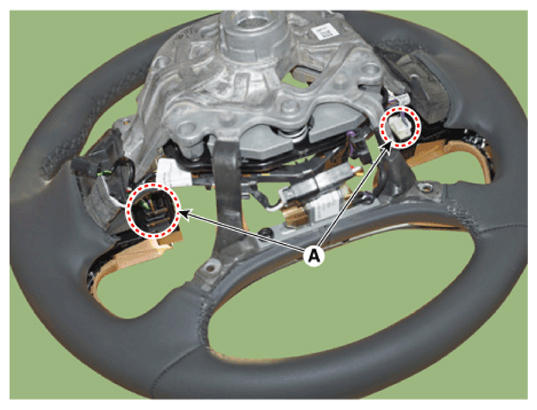

  7. Disconnect the remote control switch connector (A).
G14234141Courtesy of HYUNDAI MOTOR AMERICA
