Front Corner Radar
>>
Components And Components Location
Components And Components Location

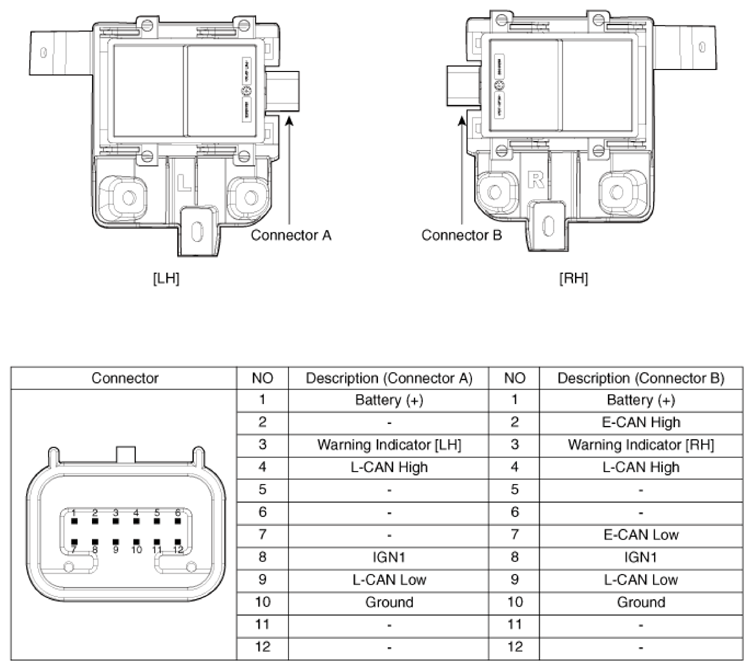

Fig 1: Front Corner Radar Connector End View And Terminal Description
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
