Genesis
>>
2021
>>
G90 5.0 Ultimate, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Smart Cruise Control System
>>
Smart Cruise Control Unit
>>
Schematic Diagrams
>>

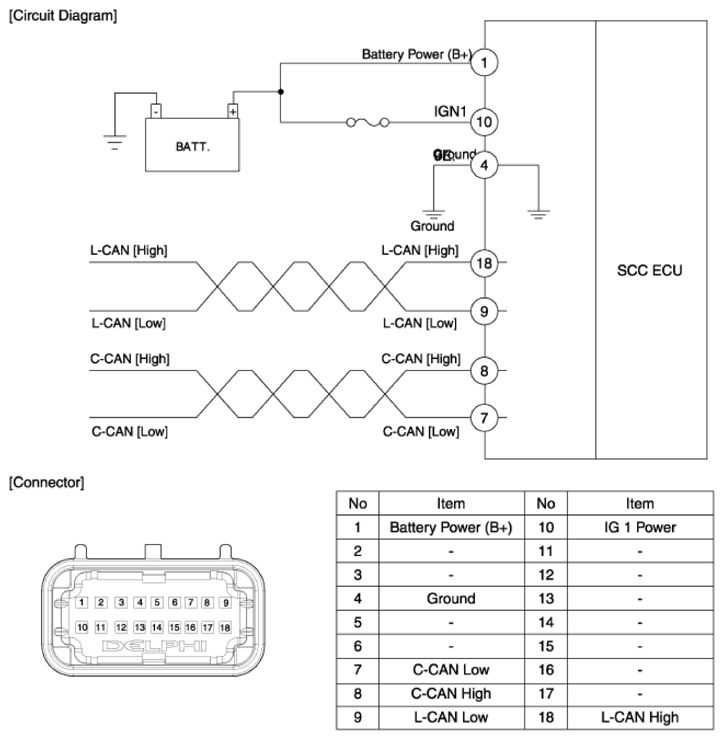

Circuit Diagram
Circuit Diagram
Fig 1: Smart Cruise Control Unit Connector End View And Terminal Description
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
