Signal Waveform & Data

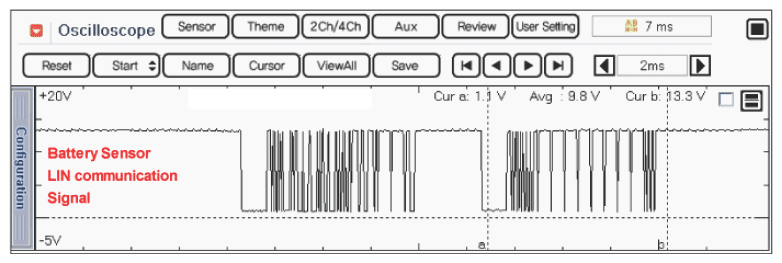

G14205370Courtesy of HYUNDAI MOTOR AMERICA

When data sending (Hi: 80% of B+, Low: 20% of B+), When data receiving (Hi: 70% of B+, Low: 30% of B+)
