Home >> Genesis >> 2021 >> G80 3.5T, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 3.5L (7 Of 9) >> DTC P2197-00: O2 Sensor Signal Stuck Lean (Bank 2 Sensor 1) >> Troubleshooting >> Diagnostic Flow-chart

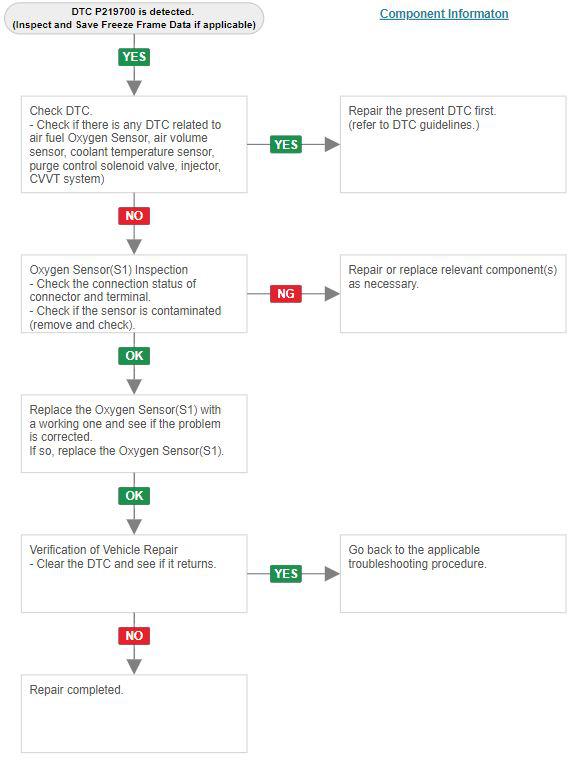

Diagnostic Flow-chart

G15569798Courtesy of HYUNDAI MOTOR AMERICA
